MIC100 Series
Online Toxic and Harmful Gas Detector
OVERVIEW
MIC100 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of single gas in the field. The gas types for detection are more than 500 types.
Output can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.

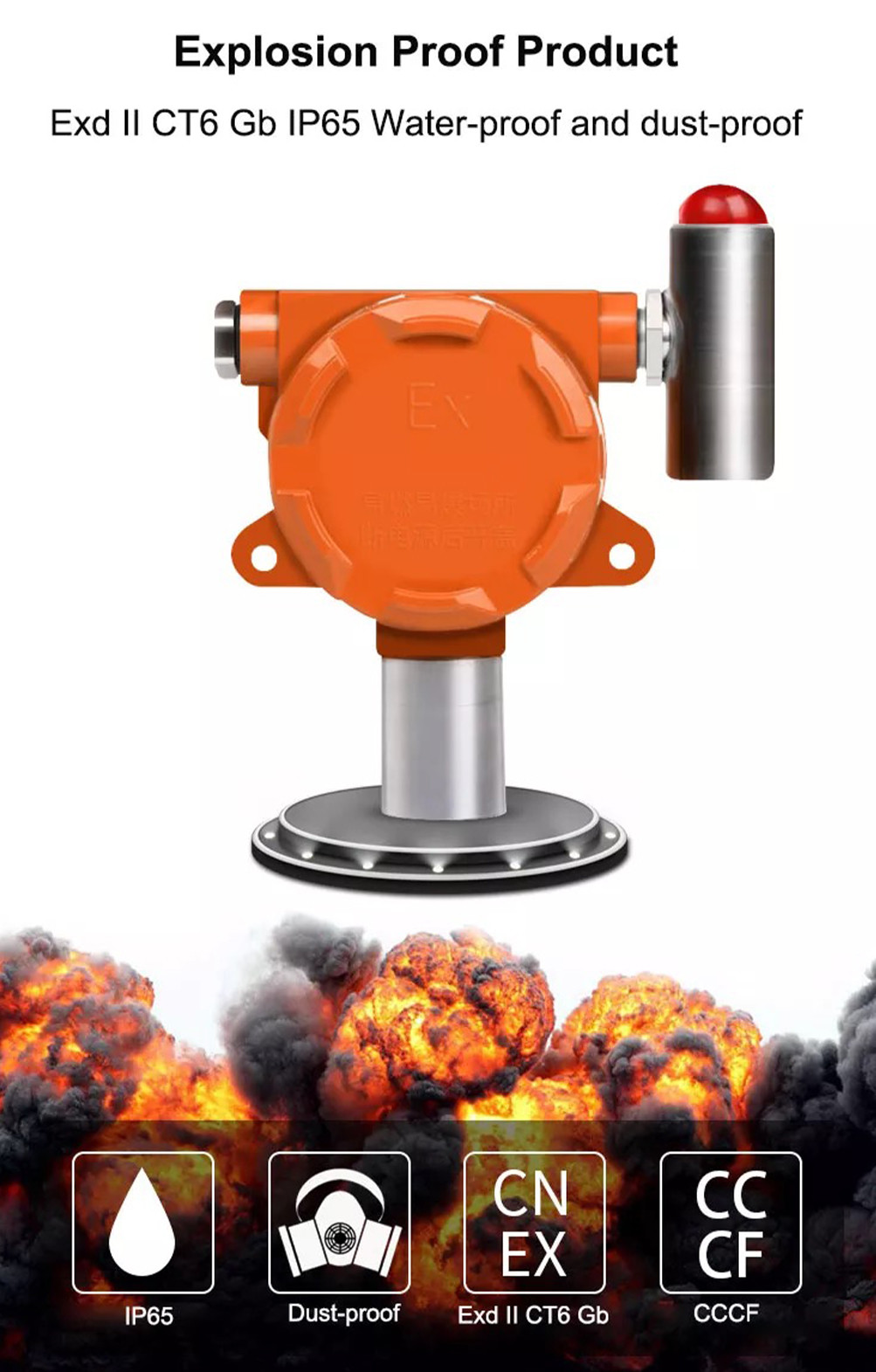

The strong, durable, and explosion-proof shell and fluorocarbon surface treatment process is suitable for use in a variety of hazardous places and corrosive environments, it is wear-resistant.
FEATURES
◆ Imported Sensors, Accurate, Fast and Stable
①It can be used in 24 hours continuous online monitoring of gas concentration, and the types for detection are more than 500 types.
②The gas units can be customized: Normally PPM, %Vol, %LEL, other: mg/m3, PPHM, ppb, mg/l.
◆ Diversified Data Communication Methods
① It is possible for real-time monitoring via the wired or remote wireless transmission and network transmission.
② Three-wire system 4 ~ 20mA standard signal and standard bus RS485 (mod bus-RTU) simultaneous output.
③ It is possible to select frequency output 200-1000Hz, Hart protocol signal, 1 ~ 5V output, SMS alarm, wireless transmission.
◆ Infrared Remote Control
Standard configuration includes the infrared remote control, it is possible for one-key operation via an infrared remote control function key, which can achieve the operation without opening the cover in hazardous situations. such as the functions like modification of the alarm point, density calibration, zero-point calibration and so on.
SPECIFICATION
| Gas | Carbon Monoxide | Sensor | Electrochemical |
| Range | 0-500,1000,2000ppm Can be customized | Resolution | 0.1 ppm; Can be customized |
| Sampling Method | diffusion/pump | Control Method | Controller/Infrared remote control |
| Allowable error | ≤±3% FS; Can be customized | Work Method | 24-hour continuously monitoring |
| Working Temp | -20 ℃ ~ + 70 ℃;(Standard Values) -40 ℃ ~ + 80 ℃;(Limit Value) | Humidity | 10 ~ 95% RH |
| Voltage | ≤2.5 W(DC24V) | Power | 12～30VDC |
| Protection level | IP65 | Explosion-proof | Exd Ⅱ CT6 |
| Cable | PVVP3 * 1.0mm 2 | Transmission Distance | ≤1000m |
| Installation | Wall-mounted；Ceiling-mounted；Vertical pipe-mounted; Horizontal pipe-mounted |
| Size(mm) | 180*140*92 | Weight(Kg) | 1.6 |
| Kit | Manual, qualification certificate, warranty card, outer packaging box |
APPLICATION
All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
