Zetron Ms104K-M - A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL

Name: Zetron Ms104KM A Portable Four in One Gas Detector Accurate Measurement CO O2 H2S LEL
Brand: Zetron
Price: 320 USD

Brand Name : Zetron

Model Number : MS104K-M

Certification : CE, ISO13485, ISO9001

Place of Origin : China

MOQ : 1

Price : 320-440USD

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 set/month

Delivery Time : 3-7 days

Packaging Details : paper carton

Product Name : Protable Single Gas Detector

Type : Biogas analyzer

Detecting Gas : CO, CO2, O2, H2S,EX

Display mode : 1.7inch LCD

Sensor type : Electrochemical sensor,IR sensor and etc

Unit : ppm, mg/m3, LEL,VOL

Detection Range : 0-100ppm,0-100%LEL,0-100%VOL,depending onrequirement

Sampling Type : Diffusion

Size : 90x70x38mm(L x W x H)

Weight : 380g

Contact Now

MS104K Portable 4-in-1 Multi Diffusion Type Gas Detector


OVERVIEW

The MS104K-M four-in-one gas detector is an essential tool for rapidly detecting gas leaks, sounding alarms when gas concentrations exceed safe thresholds. Utilizing an array of detection technologies—electrochemical methods, infrared analysis, catalytic combustion, thermal conductivity, and photoionization detection (PID)—this portable device supports various applications. It is commonly found in sectors such as fire safety, emergency rescue, confined spaces, petroleum and chemical industries, coal mining, metallurgy, refining, gas management, warehousing, healthcare, environmental protection, and air quality management.


FEATURES
Could test any 1 to 4 gases in one equipment
Diffusion/pumping measurement, the external pump is connected to the instrumentin an integrated type
With felldown alarm
With computer software for data transfer and analysise
With different probes for multi-applications


​Detailed Photos

SPECIFICATION

  	 			Detection factor 			1-4 gases (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, combustible gas Ex, CO2 CO2, VOC, etc.),
 			Depending on the site environment and user needs
 			Scope of detection 			Depending on the site environment and user needs
 			resolution ratio 			0.001ppm (0-10ppm high precision) / 0.01ppm (0-10 ppm);0.01ppm (0-100 ppm),0.1ppm (0-1000 ppm), 1ppm (0-5000 ppm); 0.1% LEL; 0.01%Vol

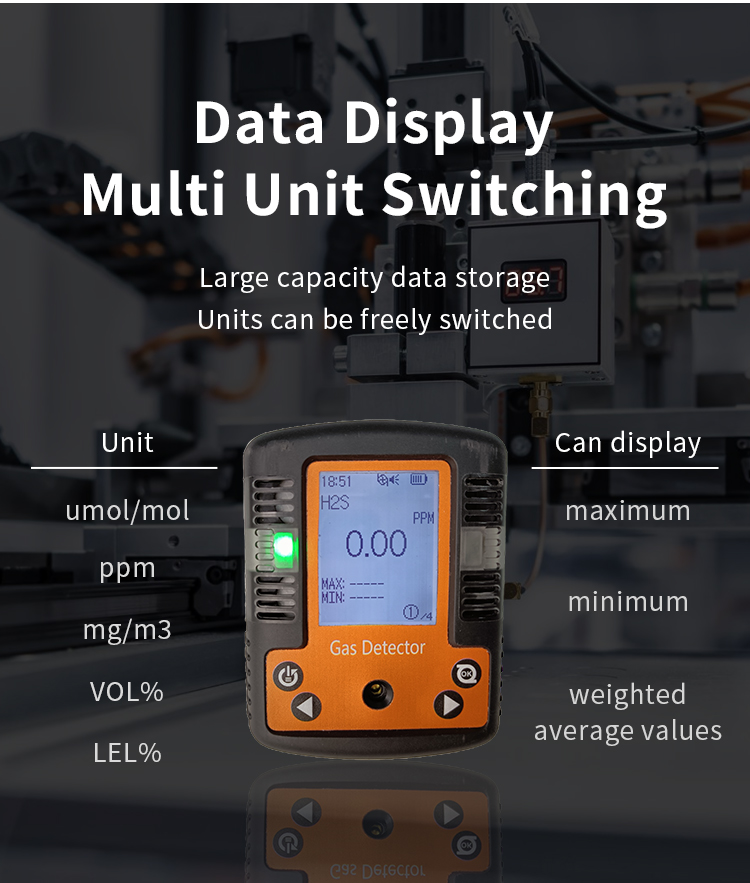

 			Unit display 			Option: umol / mol, ppm, mg/m3, VOL%, LEL%
 			Detection principle 			Electrochemistry, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoions, etc., according to the range, field environment and user needs
 			Sensor life 			2 - 3 years for electrochemical chemistry, 2 - 3 years for catalytic combustion, 5 years for infrared, 2 - 5 years for thermal conductivity, and 2 years for PID
 			detection mode 			Diffusion type / pump suction type, standard equipment: external pump, pump plug alarm function
 			display mode 			LCD
 			Display content 			Real-time concentration, alarm, time, storage, communication state, electric quantity, charging state, concentration unit, gas molecular formula, etc
 			Detection accuracy 			Typical accuracy: ± 3% FS (optional higher precision sensor) 			uncertainty 			≤±2%
 			degree of linearity 			≤±3% 			repetitiveness 			≤±2%
 			response time 			T9020 seconds (GM) 			recovery time 			30 seconds (GM)
 			working power supply 			DC 7.4V
 			battery capacity 			7.4V, 1400 mAH rechargeable polymer battery, with over charge, over discharge, over voltage, short circuit, overheat protection functions
 			stand-by time 			Over 100 hours (no catalytic sensor)
 			The alarm volume 			Buzzer 85dB (1 m distance)
 			service environment 			Temperature: -20ºC ~ + 60ºC, it can be customized-40ºC ~ + 70ºC; Relative humidity: 10-95% RH
 			communication interface 			Standard Type-C fast charging and communication, with a seat charging base
 			data storage 			Standard capacity 100,000; support local view, delete or data export, storage time interval set
 			Interface language 			Chinese or English can be set, the default Chinese interface
 			Explosion-proof type 			Intrinsically safe type ExiaCT4Ga
 			levels of protection 			IP68
 			Case material 			High strength corrosion resistance, fire proof polycarbonate, integral glue, anti-fall wear resistance anti-static, effective drop resistance of 5 meters
 			External size 			Maximum size: 907038mm (LWH) 			weight 			200g
 			standard accessory 			Manual, qualification certificate, USB charger (including data line), instrument box, external pump, filter 1.
 			Optional function 			Temperature detection: -40ºC ~ + 70ºC precision 0.5ºC; humidity detection: 0-100% RH precision 3% RH
 			Wireless data transmission: LORA, Bluetooth, SOS, one-click call for help.(4G?)
 			External micro-powered wireless Bluetooth printer.
 			Optional attachment 			Multiple filters
